SKU:AF49-1008
Electric Fuel Pump 3/8" NPT Inlet/Outlet Aeroflow
Electric Fuel Pump 3/8" NPT Inlet/Outlet Aeroflow

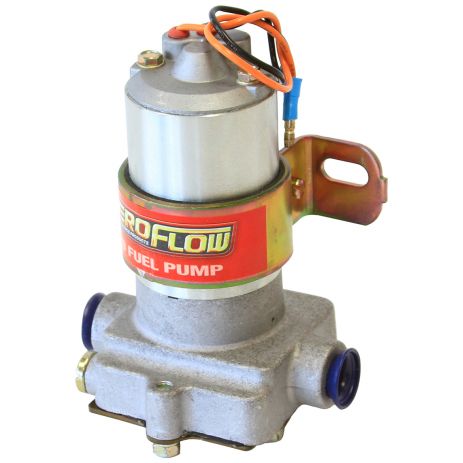

The Red fuel pump is a low pressure fuel pump which operates at a free flow of 97GPH at a set pressure of 7psi (0.48BAR) and does not require the use of a fuel regulator. This meets the flow requiremetns of most regular carburettor applications. This motor draws 2 amps of current and an 8amp fuse is recommended.����

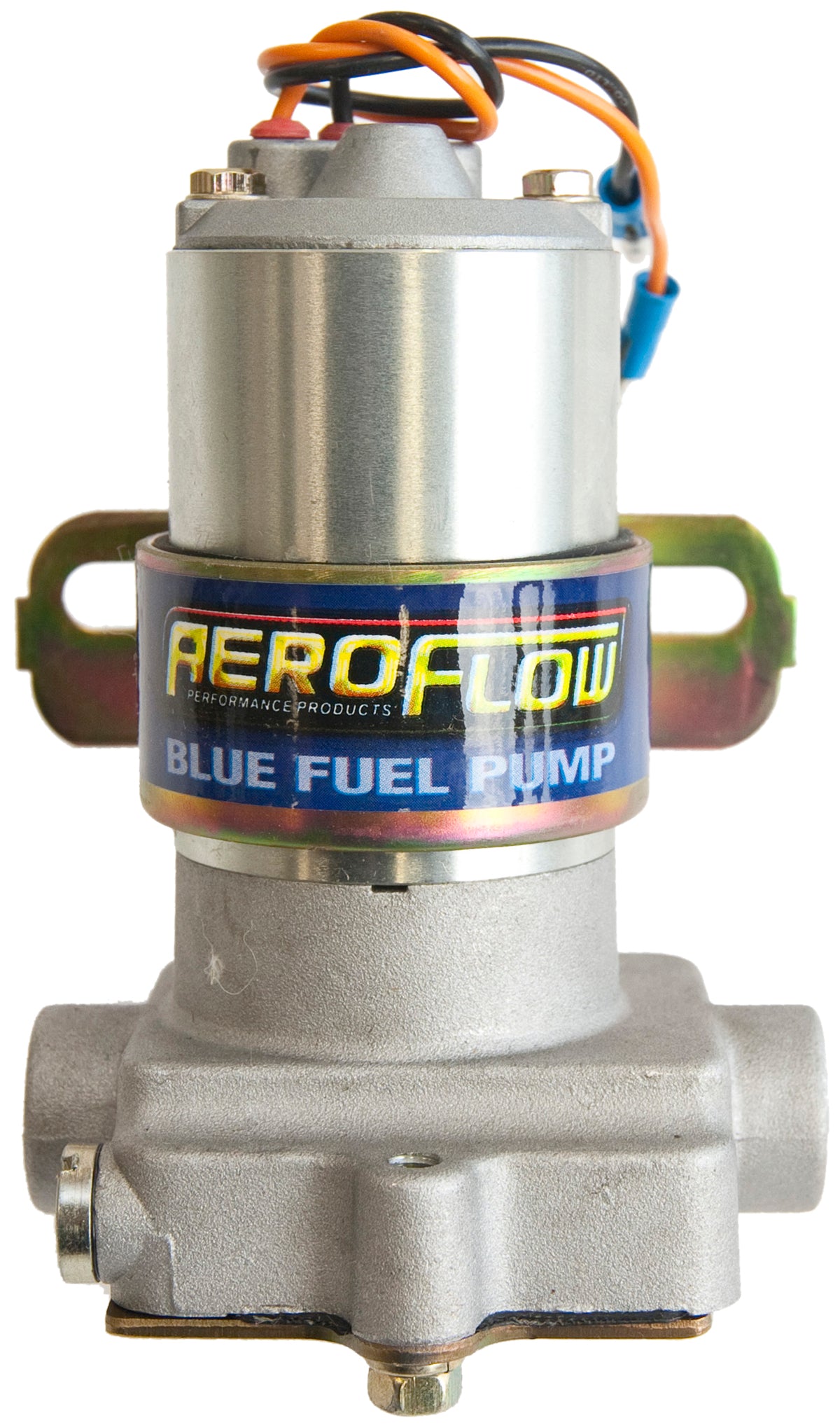

The Blue fuel pump is a high pressure fuel pump which operates at a free flow of 110GPH at a set pressure of 14psi (0.96BAR). We recommend the use of a carburettor fuel regulator. This meets the flow requiremetns of high performance carburettor applications. This motor draws 2 amps of current and an 8amp fuse is recommended.����

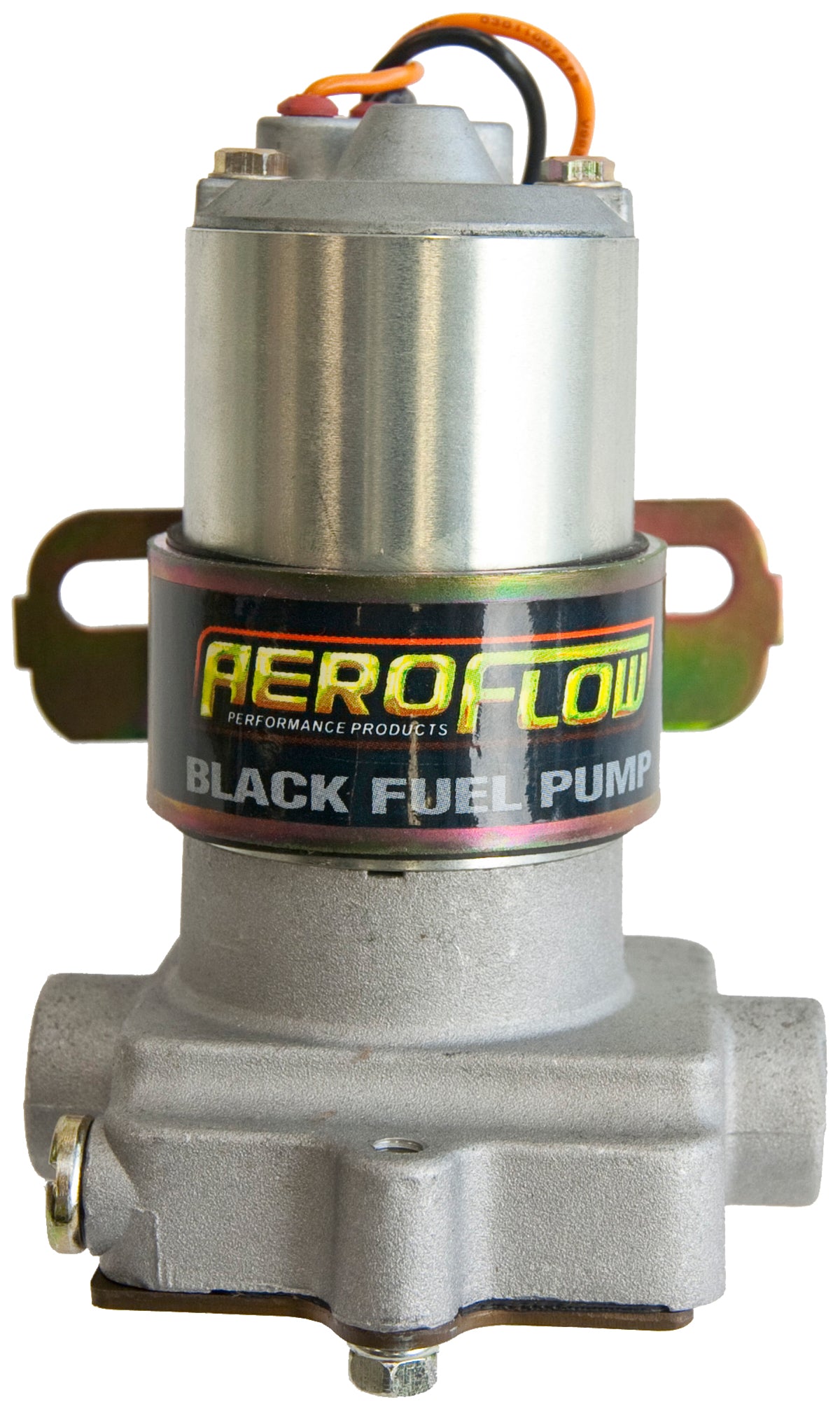

The Black fuel pump is a high pressure fuel pump which operates at a free flow of 140GPH at a set pressure of 14psi (0.96BAR). We recommend the use of a carburettor fuel regulator. This meets the flow requiremetns of high performance carburettor applications. This motor draws 2 amps of current and an 8amp fuse is recommended.����
Compatible with Unleaded, E85, Methanol and Diesel. (When running Alcohol fuels the service life will be reduced and filter maintenance must be increased).
