SKU:AF8005-2010

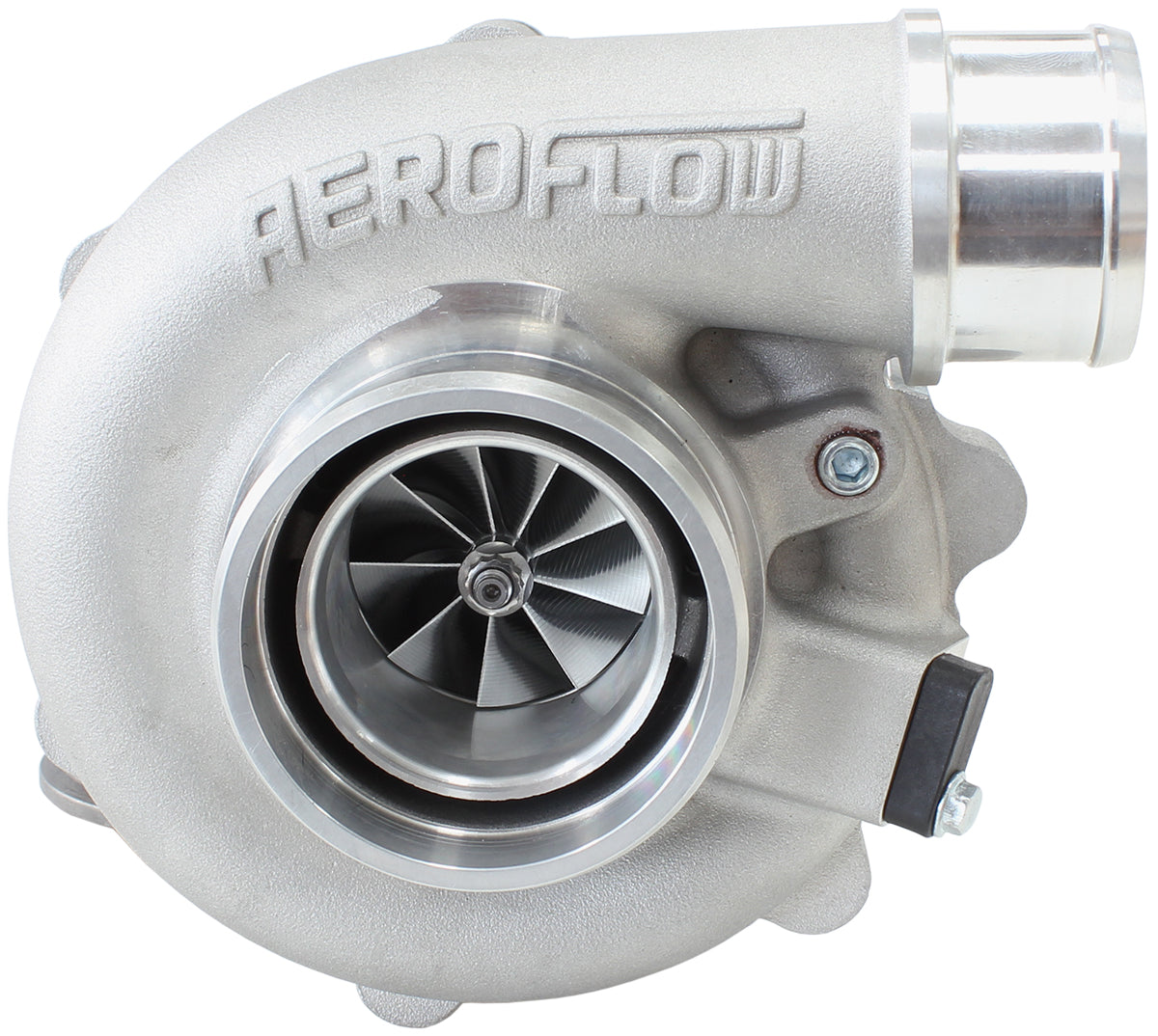

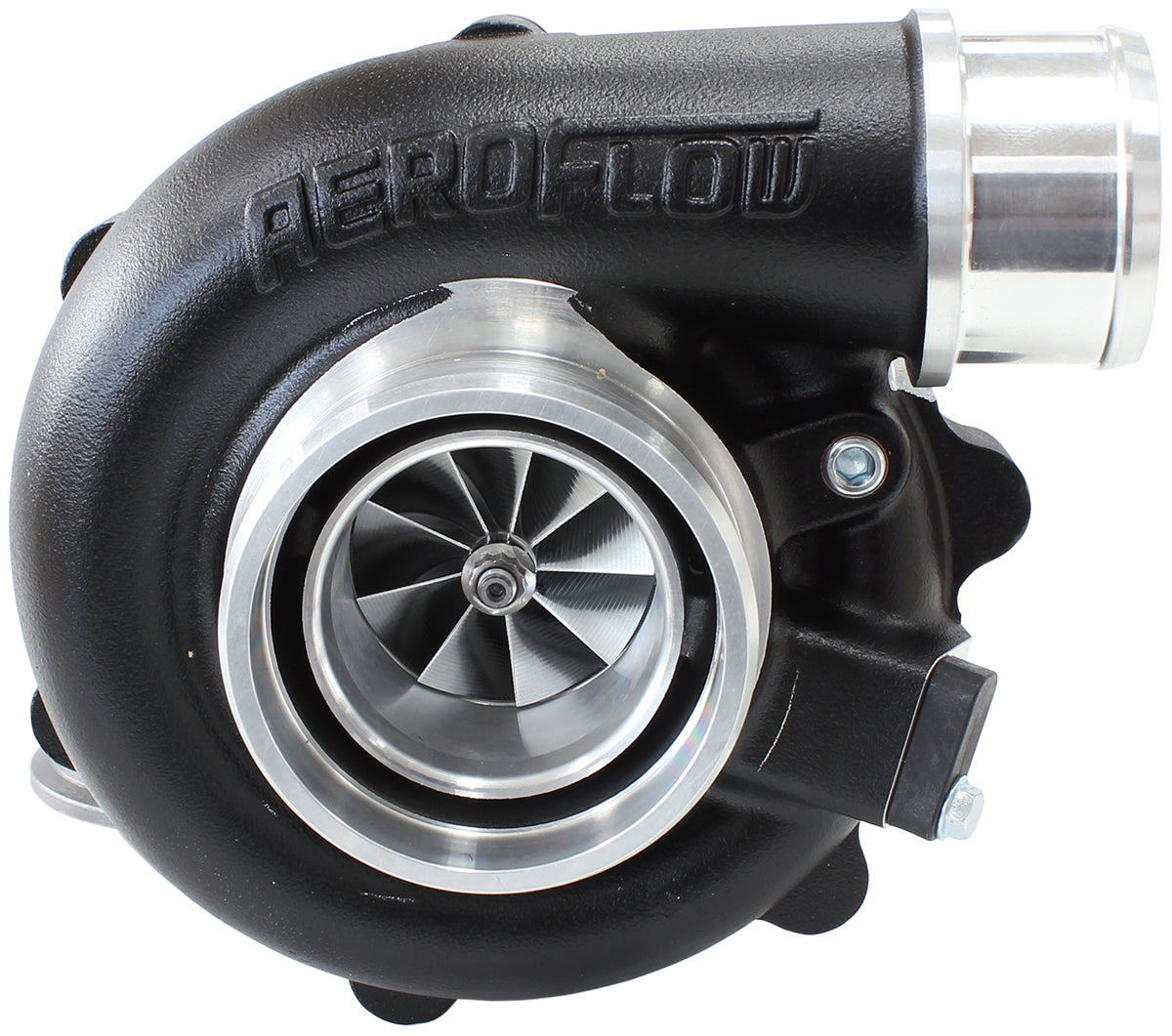

BOOSTED 4849 .72 Turbocharger 550HP

BOOSTED 4849 .72 Turbocharger 550HP

Regular price $2,431.31
Regular price Sale price $2,431.31
Sale Sold out
Tax included.

Recommended horsepower rating:  300-550HP
Recommended engine displacement:  1.4L to 3.0L

- V-Band turbine inlet and outlet
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor housing cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- SiMo-nodular cast iron rear housing
- 4 x M14 x 1.5mm coolant fitting ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor (Warranty VOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- External wastegate

Compressor Specifications
Inducer:  48mm
Exducer:  62mm
Extended Tip:  62mm
A/R:  0.70
Compressor Inlet:  3" Slip fit
Compressor Outlet:  2" Slip fit

Turbine Specifications
Inducer:  54mm
Exducer:  49mm
A/R:  0.72
Turbine Inlet Flange:  V-Band (AF8080-1016)
Turbine Outlet Flange:  V-Band (AF8080-1000)

Wastegate
External wastegate
